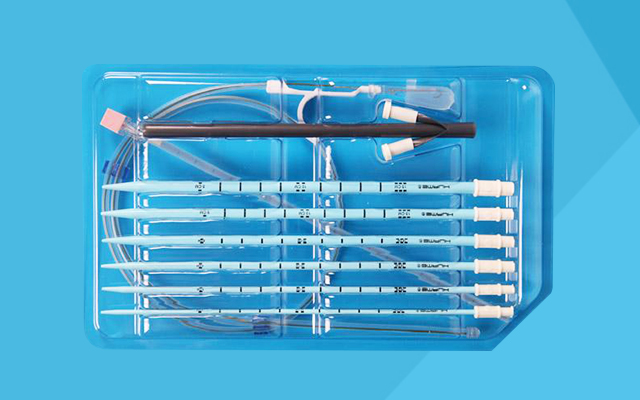

Medical blister box for minimally invasive expansion and drainage Kit
We mainly provide customized services, providing customized thermoforming medical blister boxes for different products. Customized thermoforming design and manufacturing have the highest structural rigidity and impact resistance, so as to protect products, facilitate product verification and ease of use for end users.
Suitable sterilization method: EO ethylene oxide and gamma radiation sterilization (please contact us if there are other supporting tevek materials)
High strength, high bacteria resistance, long service life, excellent anti microbial penetration ability, clean tear after sterilization without paper scraps, high sealing strength (the maximum recorded force is 3.5-7n / 15mm), good tensile strength and dialysis (35-80s)
Iso11607, en868 and GB / t19633
Other standards to be met
[1] GB / T 19633-2005 packaging of terminally sterilized medical devices
[2] GB / T 5402-2003 paper and board - Determination of air permeability (medium range) - Geller method
[3] ISO / DIS 22611 test method for penetration of anti microbial contamination aerosol of anti infectious agent clothing
[4] ASTM F 1980 Standard Guide for accelerated aging test of sterile medical device packaging
Related Products
| Product form | We mainly provide customized services, providing customized thermoforming medical blister boxes for different products. Customized thermoforming design and manufacturing have the highest structural rigidity and impact resistance, so as to protect products, facilitate product verification and ease of use for end users. |
| Feature description | ●Suitable for ethylene oxide (EO) sterilization and radiation sterilization； |
| ●We can design and customize according to customer's product needs. Unique automatic die-cutting equipment ensures the dimensional accuracy and hygiene of die-cutting products； | |
| ●Excellent physical properties include good tear resistance, puncture resistance, and good sealing performance； | |
| ●Excellent bacterial barrier ensures the sterility of the contents before use； | |
| ●We can provide a variety of thermoforming materials, including PETG, pet, APET, polyethylene and some specific grades of polypropylene. | |
| Typical application | Wide range of applications, especially for some class II and III devices。 |
| Sterilization method | Applicable to EO and radiation sterilization. |
| Personalized customization | On demand customization |
| product mix | Forming method | Vacuum thermoforming |
| Substrate type | PETG / PET / APET | |
| Cover material type | Tyvek 2fs, 1059b, 1073b | |
| Sterilization method | Ethylene oxide, ray sterilization | |
